Multi function Hydraulic Drilling Rig Crawler Mounted / Diamond Core Drilling Rig

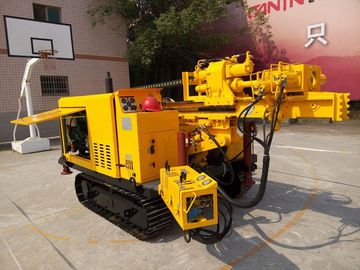

Large Image : Multi function Hydraulic Drilling Rig Crawler Mounted / Diamond Core Drilling Rig

Product Details:

Place of Origin:	CHANGSHA HUNAN
Brand Name:	CHANGTAN
Certification:	SGS/CE/ISO9001
Model Number:	CYG300

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	10000USD-35000USD
Packaging Details:	Exported wooden box
Delivery Time:	7-10 working days
Payment Terms:	T/T L/C
Supply Ability:	50 sets/ month

Contact Now

Detailed Product Description

DRILLING DEPTH:	300m	CHUCK:	φ50-φ150mm / φ73-φ280mm
ENGINE:	Diesel, 70Kw @ 1500 R.p.m	DIMENSION & WEIGHT:	582022002500mm, 4600kgs
DRILLING MAST ANGLE:	-15°-90°

Multi function Hydraulic Drilling Rig Crawler Mounted / Diamond Core Drilling Rig

CYG-300 HYDRAULIC CRAWLER DRILLING RIG

1. Multiple functions, can do mud rotary drilling, air compressor DTH drilling. Can do core drilling, fast bore hole drilling as well as geotechnical testing such as SPT*.

2. Drilling mast can be set at -15°-90°.

3. Load Sensitive Proportional multi-way valve is adopted, high efficiency, energy saving, safe and reliable.

4. 2 sets of manual Gear Speed Grades, with dual motor, power head has stepless speeds 0-378 r.p.m.

DRILLING DEPTH	300m
CHUCK	φ50-φ150mm / φ73-φ280mm
ENGINE	Diesel, 70Kw @ 1500 r.p.m
POWER HEAD	Max Torque 4400N.m, stroke 3700mm
THRUST CAPACITY	24kN
BALANCE CAPACITY	45kN
POWER HEAD SPEED	LOW SPEED r.p.m	HIGH SPEED r.p.m
Parallel Motor	0-47	94-189
Serial Motor	0-95	189-378
DRILLING MAST ANGLE	-15°-90°
HORIZONTAL DRILLING HEIGHT	2.10-2.85m
DIMENSION & WEIGHT	582022002500mm, 4600kgs
*REMARKS: SPT FUNCTION is an option and to be charged separately. A cable CAT HEAD will be mounted. POWER HEAD can slide aside and extra pulley system will be added.
