200m - 250m Prospecting Water Well Drilling Machine Oil Hydraulic Feed System

China 200m - 250m Prospecting Water Well Drilling Machine Oil Hydraulic Feed System supplier

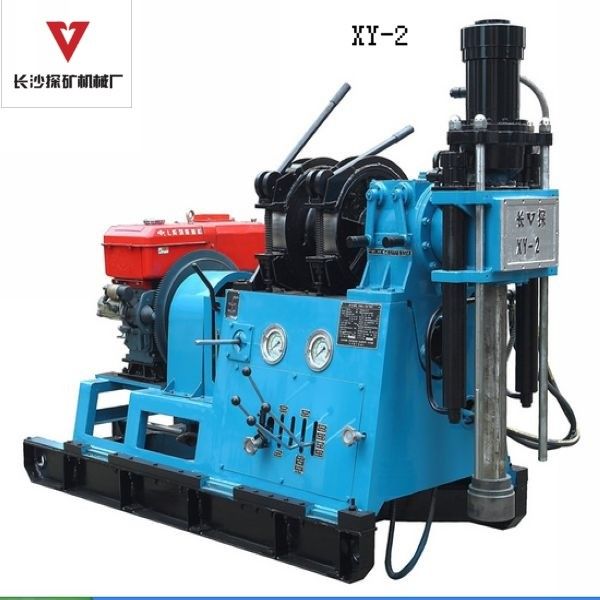

Large Image :  200m - 250m Prospecting Water Well Drilling Machine Oil Hydraulic Feed System

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: XY-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-10000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
Drilling Depth: 200m Drilling Diameter: 300mm
NET WEIGHT: 980kgs (without Power) POWER: Diesel Engine 18.5KW At 1800 R.p.m

200m - 250m Prospecting Water Well Drilling Machine Oil Hydraulic Feed System



XY-2 CORE DRILLING RIG

  • Multiple speed grades in forward & reverse revolving, meeting different drilling requirements.
  • Long spindle stroke, higher drilling efficiency.
  • Frame sliding retraction, easy to connect and replace drilling tools.
  • Solid built, high quality, long endurance.
DRILLING CAPACITY Depth 130m/PQ, 180m/HQ, 270m/NQ, 400m/BQ
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range 360°
Stroke of Spindle 550mm
Revolving Speed of Spindle Forward 60:105:165:228:235:405:638:880 r.p.m
Reverse 47:182 r.p.m
Max. Spindle Torque 2700N*m
Max. Thrust Capacity 37 kN
Max. Balance Capacity 50 kN
Main Clutch Single plate, dry disc type
AVAILABLE RODS 50mm, PQ, HQ, NQ, BQ, AW, BW
FRAME RETRACTION 420mm
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 30 kN at single pull line
Rope Speed 0.41:0.71:1.13:1.56 m/s at single pull time
Drum Capacity Φ14mm × 45m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 26L/min @ 1294r.p.m
Max. Pressure 8MPa
POWER Diesel engine 18.5KW at 1800 r.p.m
  Or electronic Motor, 18.5KW at 1470 r.p.m
NET WEIGHT 980kgs (without power)
DIMENSION(L×W×H) 2330 × 1050 ×1620mm





200m - 250m Prospecting Water Well Drilling Machine Oil Hydraulic Feed System
