T2 Double Barrel Exploration Drill Rigs For Kenya / SPT Geotechnical Investigation

China T2 Double Barrel Exploration Drill Rigs For Kenya / SPT Geotechnical Investigation supplier

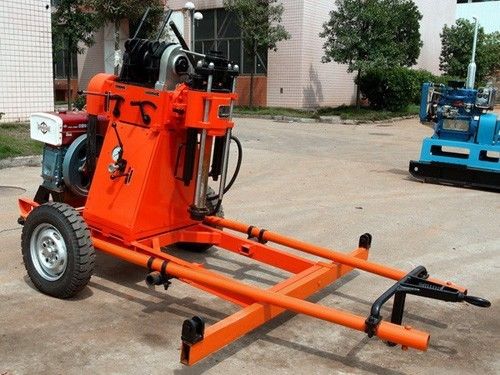

Large Image :  T2 Double Barrel Exploration Drill Rigs For Kenya / SPT Geotechnical Investigation

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: GY-150T

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-10000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
Drilling Depth: 100m Drilling Diameter: 300mm
Type: Rotary Drilling Rig Power: Diesel Or Electric Motor
Warranty:: 1 Year Brand Name: Changtan

T2 Double Barrel Exploration Drill Rigs For Kenya / SPT Geotechnical Investigation



Function:

1. Core drill and sampling such as soil investigation, shallow depth mineral exploration

2. Small diameter bore hole such as water well, thermal well, blasting hole, mini piles.



Tools Applied:

1. General rods in 42mm dia

2. All sorts of barrels that used in conventional drilling:

T2, T6, NMLC, LTK, WF, WG, WM, WG & B single barrel, Chinese single barrel and NQ, HQ barrel(not wireline drilling).

3. SPT tools

4. Other tools that required in the tests and conform to relative international standard such as shelby tubes, bailers etc



Feature:

1. Small, light and compact in structure

2. high quality, long duration, long lasting performance

3. Rig incorporated with a mud pump

4. Rig body can slide on base frame to give empty spaces to handle drilling tools





DRILLING CAPACITY Depth 180m / 42
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range 360°
Stroke of Spindle 450mm
Revolving Speed of Spindle 60 200 400 610 1100 rpm
Max. Spindle Torque 1800N*m
Max. Thrust Capacity 20 kN
Max. Balance Capacity 30 kN
AVAILABLE RODS 42mm, 50mm, AW, BW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 24 kN at single pull line
Rope Speed 0.20:0.72:1.26:2.8 m/s at single pull time
Drum Capacity *Φ11mm × 26m
CAT – HEAD Φ132 × 110mm
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 33L/min @ 1650 r.p.m
Max. Pressure 25MPa
POWER Diesel engine ZS1100, 12.1KW at 2200 r.p.m
  Or electronic Motor, 11KW at 1460 r.p.m
NET WEIGHT 500kgs (without power)
DIMENSION(L×W×H) 2050 × 1180 ×1420mm
REMARKS *CAT HEAD is optional and charged separately.
MODEL Weight Dimension Frame Retraction Trailer Support Mud Pump Specs
GY-150T 500 KGS 2050*1180*1420 Not Support Yes, ladder type drilling mast Not Support
GY-150H 510 KGS 2050*1180*1420

Retraction

400mm

NO, four poles drilling mast Not Support
GY-150B 600 KGS 1610*790*1420 Not Support Yes,ladder type drilling mast 100L/min, 1.5Mpa
GY-150HB 610 KGS 1610*790*1420

Retraction

400mm

NO, four poles drilling mast 100L/min, 1.5Mpa





T2 Double Barrel Exploration Drill Rigs For Kenya / SPT Geotechnical Investigation
