Crawler Mounted Diamond Hydraulic Core Drilling Rig for 1500m

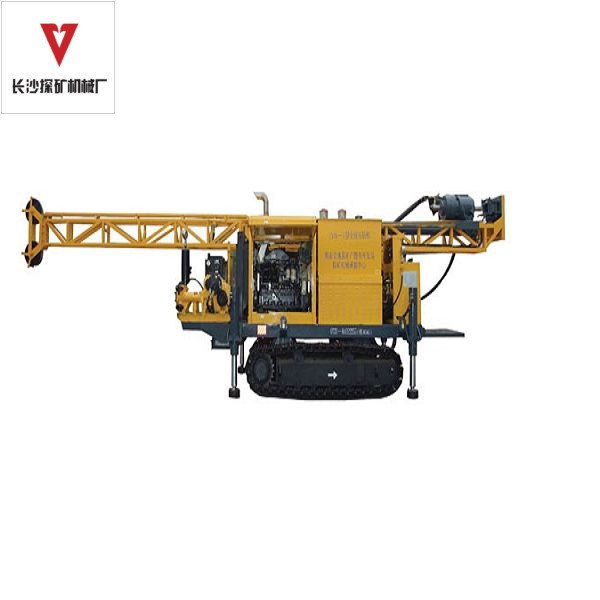

: Large Image : Crawler Mounted Diamond Hydraulic Core Drilling Rig for 1500m

Product Details:

Place of Origin:	CHANGSHA HUNAN
Brand Name:	CHANGTAN
Certification:	SGS/CE/ISO9001
Model Number:	CYDX-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	10000USD-35000USD
Packaging Details:	Exported wooden box
Delivery Time:	7-10 working days
Payment Terms:	T/T L/C
Supply Ability:	50 sets/ month

Contact Now

Detailed Product Description

DRILLING DEPTH:	1500m	Dimension & Weight:	1000022502650mm, 9000kgs
Crawler:	600*400mm, Max 2km/h, 30°clambing	MUD PUMP:	Max Displacement 250L/min, Max 10Mpa
Drilling Angle:	45°-90°

Crawler Mounted Diamond Hydraulic Core Drilling Rig for 1500m

CYDX-5 CRAWLER HYDRAULIC DRILING RIG

1. 2 Gear Speed Grades(manual) with variable displacement hydraulic motor, power head output can be stepless adjusted 0-1200 r.p.m. With 2 torque grades meets different drilling requirements.

2. Long feeding stroke, 3.5m.

3. Hoist 9m drilling tools in one time

4. Imported quality hydraulic parts, Cummins engine.

Dimension & Weight	1000022502650mm, 9000kgs
Crawler	600*400mm, max 2km/h, 30°clambing
DRILLING CAPACITY	600m/PQ, 900m/HQ, 1200m/NQ, 1500m/BQ
ENGINE	Water cooling, turbo pressure, 6 cylinders, 132kw @2200r.p.m
POWER HEAD
Reduction Ratio	Rotary Speed(r.p.m)	Torque(Nm)
8.77:1	0-300	4040
2.19:1	525-1200	1050
MAIN WINCH	Lifting Capacity 7700kg, 45m/min, single pull
	18mm*50m rope capacity
WIRELINE WINCH	Lifting Capacity 1250kg, 90m/min
	6mm*1500m rope capacity
DERRICK	9.6m
Drilling Angle	45°-90°
Stroke	3500mm
Max Thrust Capacity	50.2kN
Max Balance Capacity	152kN
MUD PUMP	Max displacement 250L/min, max 10Mpa
