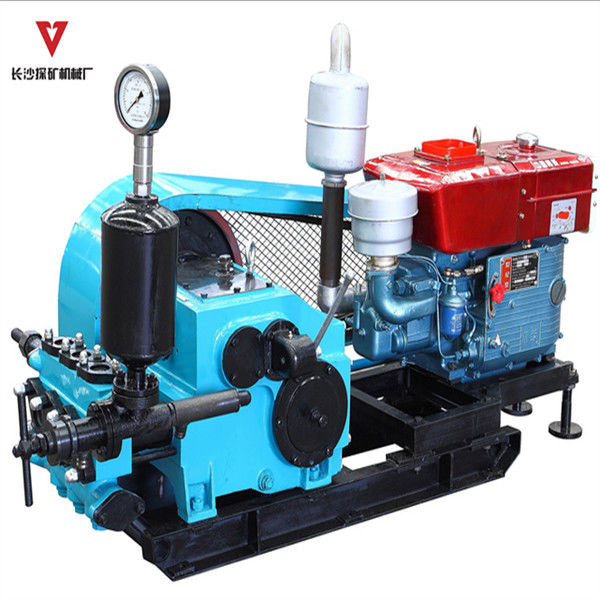

BW160/10 Large Triplex Mud Pump with Hydraulic motor piston 14.7kW
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressure: | 2-10 Mpa | Suction Pipe Dia: | φ51mm |
|---|---|---|---|
| Discharge Pipe Dia: | φ25mm | Displacement: | 44-160L/min |
BW-160/10 is a horizontal triplex single acting reciprocal piston pump. It has many good features like small size, light weight, long life, easy to operate, easy to be transported, good performance, and using many standard or universal industrial parts. It is suitable for geological prospection, geological engineering drilling within 1000 meters.
| Cylinder Diameter | 70mm |
| Stroke | 70mm |
| Pump Speed | 200 132 83 55 times/min |
| Displacement | 160 107 67 44 L/min |
| Pressure | 2.5 4 6.5 10 Mpa |
| Volume Efficiency | 95% |
| Total Efficiency | 75% |
| Input Power | 14.7kW(Diesel engine), 11kW(Electricity motor) |
| Input Torque & Speed | 150Nm @ 610 r.p.m |
| Suction Pipe dia | 51mm |
| Discharge Pipe dia | 25mm |
| Dimension & Weight |
1920*830*1000mm, 560 kgs(ZS1110 diesel engine) 1525*830*950mm (electricity motor) |
