100m Diesel Rotary Core Drill Rig With Mud Pump , 100mm Diamond Core Drill

China 100m Diesel Rotary Core Drill Rig With Mud Pump , 100mm Diamond Core Drill supplier

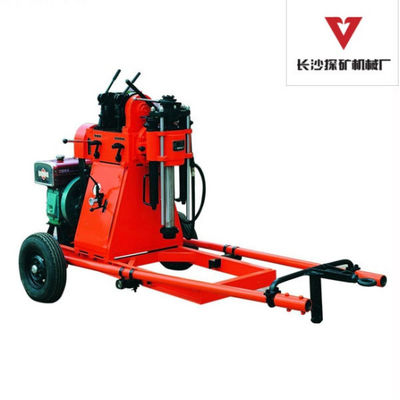

Large Image :  100m Diesel Rotary Core Drill Rig With Mud Pump , 100mm Diamond Core Drill

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: XY-1B

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-8000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
DRILLING CAPACITY: Depth 120m / 42 Type: Twin Cylinder, Oil-hydraulic Feed System, Spindle Type
MUD PUMP: Horizontal Single Cylinder Piston Pump NET WEIGHT: 480kgs (without Power)

100m Diesel Rotary Core Drill Rig With Mud Pump , 100mm Diamond Core Drill



XY-1BT PORTABLE DRILLING RIG WITH MUD PUMP INTEGRATED

  • Mud pump is mounted on XY-1BT
  • Multiple revolving speed grades for selection, fitting different drilling tasks.
  • 2-wheels trailer, portable, easy to move by towing the trailer.
DRILLING CAPACITY Depth 120m / 42
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range 360°
Stroke of Spindle 400mm
Revolving Speed of Spindle 140 305 480 1050 rpm
Max. Spindle Torque 500N*m
Max. Thrust Capacity 20 kN
Max. Balance Capacity 30 kN
AVAILABLE RODS 42mm, 50mm, AW, BW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 10kN at single pull line
Rope Speed 0.46 0.87 1.48 3.23 m/s at single pull time
Drum Capacity *Φ9.3mm × 18m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 31L/min @ 2200r.p.m
Max. Pressure 25MPa
POWER Diesel engine ZS1100, 12.1KW at 2200 r.p.m
  Or electronic Motor, 11KW at 1460 r.p.m
MUD PUMP Horizontal Single Cylinder Piston Pump
100L/min, 1.5Mpa
NET WEIGHT 480kgs (without power)
DIMENSION(L×W×H) 1800 × 835 ×1150mm



100m Diesel Rotary Core Drill Rig With Mud Pump , 100mm Diamond Core Drill
