Oil Hydraulic Feed System Portable Drilling Rig With Mud Pump Integrated
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | XY-1BT PORTABLE DRILLING RIG WITH MUD PUMP INTEGRATED | DRILLING CAPACITY: | 120m |
|---|---|---|---|
| Type: | Twin Cylinder, Oil-hydraulic Feed System | Drilling Diameter: | 46mm-300mm |
| Power: | Diesel Engine ZS1100, 12.1KW At 2200 R.p.m Or Electronic Motor, 11KW At 1460 R.p.m | Feeding Stroke: | 400mm |
| Net Weight: | 480kgs (without Power) | Dimension(L×W×H): | 1800 × 835 ×1150mm |
| Highlight: | water well drilling equipment,portable water well drilling equipment |
||

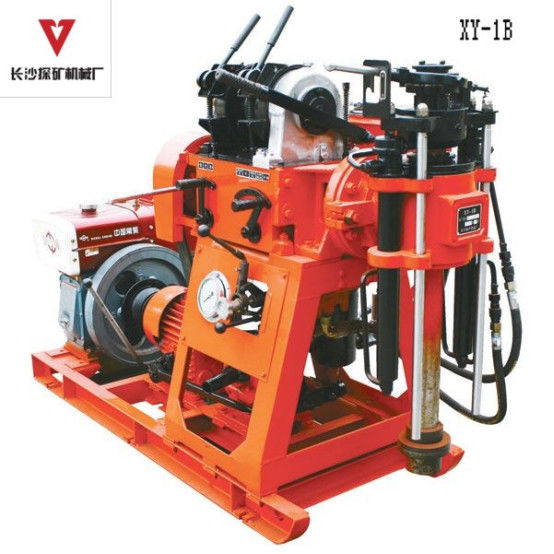

XY-1BT PORTABLE DRILLING RIG WITH MUD PUMP INTEGRATED
Specifications:
| DRILLING CAPACITY | Depth 120m / 42 |
| SWIVEL HEAD | |
| Type | Twin cylinder, Oil-hydraulic feed system, Spindle type |
| Angle Range | 360° |
| Stroke of Spindle | 400mm |
| Revolving Speed of Spindle | 140 305 480 1050 rpm |
| Max. Spindle Torque | 500N*m |
| Max. Thrust Capacity | 20 kN |
| Max. Balance Capacity | 30 kN |
| AVAILABLE RODS | 42mm, 50mm, AW, BW |
| HOIST DRUM | |
| Type | Planetary grear, hand brake type |
| Hoisting Capacity | 10kN at single pull line |
| Rope Speed | 0.46 0.87 1.48 3.23 m/s at single pull time |
| Drum Capacity | *Φ9.3mm × 18m |
| OIL - HYDRAULIC | |
| Type | Constant delivery, gear type pump |
| Delivery Capacity | 31L/min @ 2200r.p.m |
| Max. Pressure | 25MPa |
| POWER | Diesel engine ZS1100, 12.1KW at 2200 r.p.m |
| Or electronic Motor, 11KW at 1460 r.p.m | |
| MUD PUMP | Horizontal Single Cylinder Piston Pump |
| 100L/min, 1.5Mpa | |
| NET WEIGHT | 480kgs (without power) |
| DIMENSION(L×W×H) | 1800 × 835 ×1150mm |
Description:
- Mud pump is mounted on XY-1BT
- Multiple revolving speed grades for selection, fitting different drilling tasks.
- 2-wheels trailer, portable, easy to move by towing the trailer.
- Small, light, easy to be dismantled and assembled.
5. Hydraulic feeding structure, high drilling efficiency.
6. Geotechnical investigation for engineering constructions, shallow depth mineral exploration and blasting hole drilling.
