Horizontal Three Cylinder Mud Pumps For Drilling Rigs BW250
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressure: | 2.5-7 Mpa | Suction Pipe Dia: | φ76mm |
|---|---|---|---|
| Discharge Pipe Dia: | φ51mm | Displacement: | 35-250L/min |
Horizontal Three Cylinder Mud Pumps For Drilling Rigs BW250

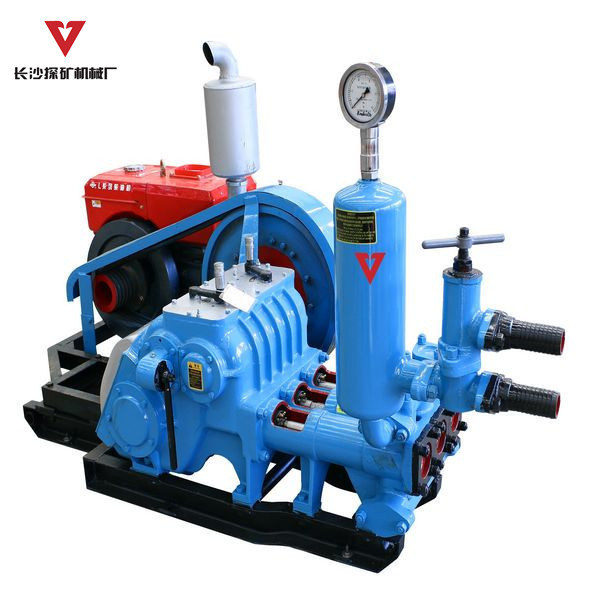

BW-250 MUD PUMP
BW-250 is a horizontal, triplex single acting reciprocating piston pump, BW-250 is provided with two kind of liners. It can be used for drilling mud pump as well as concrete grouting pump.
| Cylinder Diameter | 100mm | ||
| Stroke | 80mm | 65mm | |
| Handler Position | I II III IV | I II III IV | |
| Pump Speed | 200 116 74 42 | 200 116 72 42 | times/min |
| Displacement | 250 145 90 52 | 166 96 60 35 | L/min |
| Pressure | 2.5 4.5 6.0 6.0 | 4.0 6.0 7.0 7.0 | Mpa |
| Volumetric Efficiency | 85% | ||
| Total Efficiency | 72% | ||
| Input Power and Speed | 15 kW @ 500 r.p.m | ||
| Suction Pipe dia | 76mm | ||
| Discharge Pipe dia | 51mm | ||
| Engine | L28 diesel engine or electricity motor | ||
| Dimension & Weight | 1100*995*650mm, 500kgs | ||
