Geotechnical Core Drill Rig Machine 200m - 250m Rotary Rig Machine XY-2

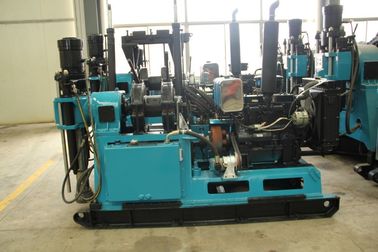

: Large Image : Geotechnical Core Drill Rig Machine 200m - 250m Rotary Rig Machine XY-2

Product Details:

Place of Origin:	CHANGSHA HUNAN
Brand Name:	CHANGTAN
Certification:	SGS/CE/ISO9001
Model Number:	XY-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	3600USD-10000USD
Packaging Details:	Exported wooden box
Delivery Time:	7-10 working days
Payment Terms:	T/T L/C
Supply Ability:	100 SETS/MONTH

Contact Now

Detailed Product Description

Drilling Depth:

200m

Drilling Diameter:

300mm

NET WEIGHT:

980kgs (without Power)

POWER:

Diesel Engine 18.5KW At 1800 R.p.m

Highlight:

diamond drilling machine

rotary rig machine

Geotechnical Core Drill Rig Machine 200m - 250m Rotary Rig Machine XY-2

XY-2 CORE DRILLING RIG

Multiple speed grades in forward & reverse revolving, meeting different drilling requirements.
Long spindle stroke, higher drilling efficiency.
Frame sliding retraction, easy to connect and replace drilling tools.
Solid built, high quality, long endurance.

DRILLING CAPACITY	Depth 130m/PQ, 180m/HQ, 270m/NQ, 400m/BQ
SWIVEL HEAD
Type	Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range	360°
Stroke of Spindle	550mm
Revolving Speed of Spindle	Forward 60:105:165:228:235:405:638:880 r.p.m
Revolving Speed of Spindle	Reverse 47:182 r.p.m
Max. Spindle Torque	2700N*m
Max. Thrust Capacity	37 kN
Max. Balance Capacity	50 kN
Main Clutch	Single plate, dry disc type
AVAILABLE RODS	50mm, PQ, HQ, NQ, BQ, AW, BW
FRAME RETRACTION	420mm
HOIST DRUM
Type	Planetary grear, hand brake type
Hoisting Capacity	30 kN at single pull line
Rope Speed	0.41:0.71:1.13:1.56 m/s at single pull time
Drum Capacity	Φ14mm × 45m
OIL - HYDRAULIC
Type	Constant delivery, gear type pump
Delivery Capacity	26L/min @ 1294r.p.m
Max. Pressure	8MPa
POWER	Diesel engine 18.5KW at 1800 r.p.m
	Or electronic Motor, 18.5KW at 1470 r.p.m
NET WEIGHT	980kgs (without power)
DIMENSION(L×W×H)	2330 × 1050 ×1620mm
