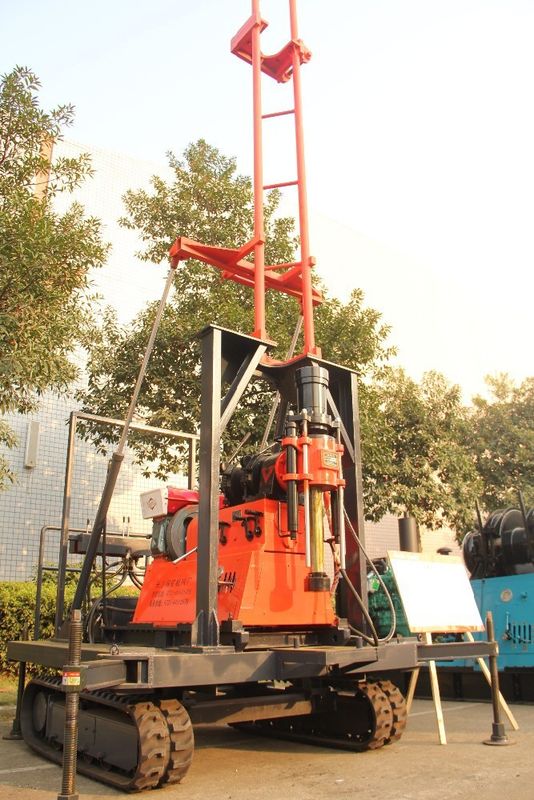

200m Hydraulic Crawler Rock Drill With Mud Pump , Generator On Board

: Large Image : 200m Hydraulic Crawler Rock Drill With Mud Pump , Generator On Board

Product Details:

Place of Origin:	CHANGSHA HUNAN
Brand Name:	CHANGTAN
Certification:	SGS/CE/ISO9001
Model Number:	GYL-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	3600USD-8000USD
Packaging Details:	Exported wooden box
Delivery Time:	7-10 working days
Payment Terms:	T/T L/C
Supply Ability:	100 SETS/MONTH

Contact Now

Detailed Product Description

DRILLING CAPACITY:	Depth 225m / 50; 200m / NQ	Angle Range:	360°
AVAILABLE RODS:	50mm, AW, BW,BQ,NQ,HQ	NET WEIGHT:	2200kgs
DIMENSION(L×W×H):	3800 × 2170 × 3050mm
Highlight:	hydraulic crawler dril , hydraulic rotary drilling rig

200m Hydraulic Crawler Rock Drill With Mud Pump , Generator On Board

GYL-200 CRAWLER-MOUNTED DRILLING RIG

GY-200 Spindle Rig mounted on crawler, easy to move
Multiple speed grades in forward & reverse revolving, meeting different drilling requirements.
Rotary drilling and cable percussion drilling.
Spindle can turn 360°range.
Frame retraction function for easy connection and replacement to drilling tools.

DRILLING CAPACITY	Depth 225m / 50; 200m / NQ
SWIVEL HEAD
Type	Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range	360°
Stroke of Spindle	400mm
Revolving Speed of Spindle	Forward 900 475 388 205 157 68 r.p.m
Revolving Speed of Spindle	Reverse 256 85 r.p.m
Max. Spindle Torque	2000N*m
Max. Thrust Capacity	29 kN
Max. Balance Capacity	39 kN
AVAILABLE RODS	50mm, AW, BW,BQ,NQ,HQ
FRAME RETRACTION	400mm
HOIST DRUM
Type	Planetary grear, hand brake type
Hoisting Capacity	30 kN at single pull line
Rope Speed	0.27 0.64 0.83 1.58 1.64 m/s at single pull time
Drum Capacity	Φ12.5mm × 30m
OIL - HYDRAULIC
Type	Constant delivery, gear type pump
Delivery Capacity	50 liter / min at 2500 r.p.m
Max. Pressure	25MPa
POWER	Diesel engine ZS1110, 14.7KW at 2200 r.p.m
	Or electronic Motor, 15KW at 1460 r.p.m
NET WEIGHT	2200kgs
DIMENSION(L×W×H)	3800 × 2170 × 3050mm
CRAWLER	1.5km/h, climbing angle 20°, max loading 3.2t
