50m Diesel Core Drill Rig M Geotech And Rotary Drilling Rig Equipment

: Large Image : 50m Diesel Core Drill Rig M Geotech And Rotary Drilling Rig Equipment

Product Details:

Place of Origin:	CHANGSHA HUNAN
Brand Name:	CHANGTAN
Certification:	SGS/CE/ISO9001
Model Number:	GY-50-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	3600USD-8000USD
Packaging Details:	Exported wooden box
Delivery Time:	7-10 working days
Payment Terms:	T/T L/C
Supply Ability:	100 SETS/MONTH

Contact Now

Detailed Product Description

DRILLING CAPACITY:

Depth 50m / 42

Feeding Stroke:

400mm

POWER:

Diesel Engine CZ195, 8.8KW

AVAILABLE RODS:

42mm, AW, BW

Highlight:

core drilling machine

rotary rig machine

50m Diesel Core Drill Rig M Geotech And Rotary Drilling Rig Equipment

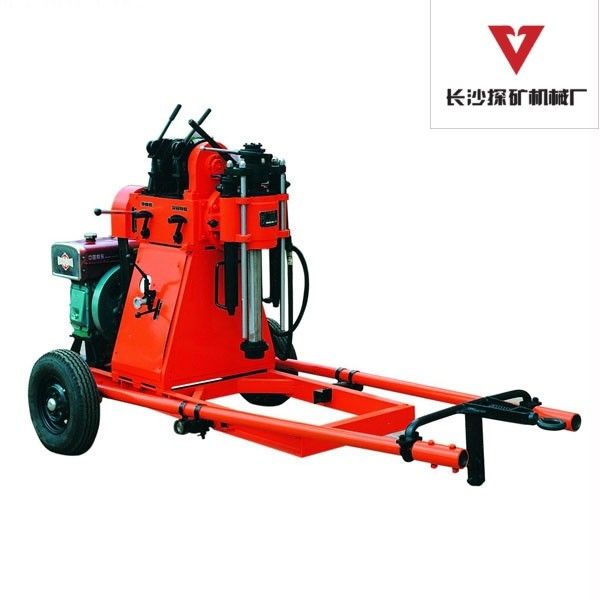

GY-50-1 PORTABLE DRILLINLG RIG

Rotary drilling and cable percussion drilling function.
2-wheels trailer, portable, easy to move by towing the trailer.
Small, light, easy to be dismantled and assembled.
Hydraulic feeding structure, high drilling efficiency.

DRILLING CAPACITY	Depth 50m / 42
SWIVEL HEAD
Type	Twin cylinder, Oil-hydraulic feed system
Feeding Stroke	400mm
Revolving Speed	54 140 300 rpm
Max. Spindle Torque	350N*m
Max. Thrust Capacity	10 kN
Max. Balance Capacity	30 kN
AVAILABLE RODS	42mm, AW, BW
HOIST DRUM
Type	Planetary grear, hand brake type
Hoisting Capacity	10 kN at single pull line
Rope Speed	0.14 0.32 0.46 0.68 1.17 2.53 m/s at single pull time
Drum Capacity	Φ9.3mm × 18m
OIL - HYDRAULIC
Type	Constant delivery, gear type pump
Delivery Capacity	30L/min @ 1444 r.p.m
POWER	Diesel engine CZ195, 8.8KW
NET WEIGHT	400kgs (without power)
DIMENSION(L×W×H)	1660 ×732 ×1170mm
