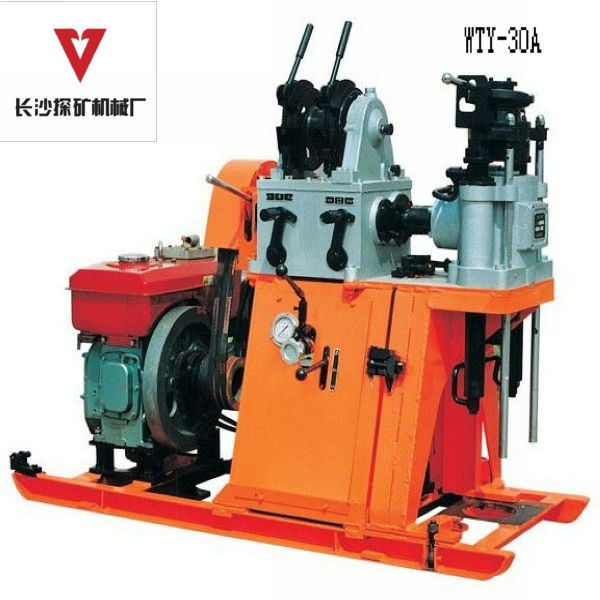

Large Image :  Borehole And Light Soil Sample Engineering Drilling Rig WTY30

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: WTY-30A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-8000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
DRILLING CAPACITY: DRILLING CAPACITY Depth 30m / 33.5 Type: Type Twin Cylinder, Oil-hydraulic Feed System, Spindle Type
POWER: Diesel Engine R185, 6.47KW At 2200 R.p.m NET WEIGHT: 290kgs (without Power)
DIMENSION(L×W×H): 1510 × 600 ×1055mm

Borehole And Light Soil Sample Engineering Drilling Rig WTY30



WTY-30A LIGHT DRILLING RIG



  • Small, light, easy to be dismantled and assembled.
  • Good balance in size and drilling capacity, 30m drilling capability in size 76mm.
  • Ideal for geotechnical survey drilling in hard-to-access areas like tropical forest, high mountains, hills etc.
DRILLING CAPACITY Depth 30m / 33.5
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle Type
Angle Range
Stroke of Spindle 400mm
Revolving Speed of Spindle 136 338 578 rpm
Max. Spindle Torque 350N*m
Max. Thrust Capacity 8 kN
Max. Balance Capacity 10 kN
AVAILABLE RODS 33.5mm AW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 4 kN at single pull line
Rope Speed 0.46:1.15:1.97 m/s at single pull time
Drum Capacity *Φ8mm × 18m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 24 L/min @ 1684 r.p.m
Max. Pressure 25MPa
POWER Diesel engine R185, 6.47KW at 2200 r.p.m
  Or electronic Motor, 7.5 KW at 1440 r.p.m
NET WEIGHT 290kgs (without power)
DIMENSION(L×W×H) 1510 × 600 ×1055mm





Borehole And Light Soil Sample Engineering Drilling Rig WTY30
