Borehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150T

I'm Online Chat Now

Borehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150T

China Borehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150T supplier

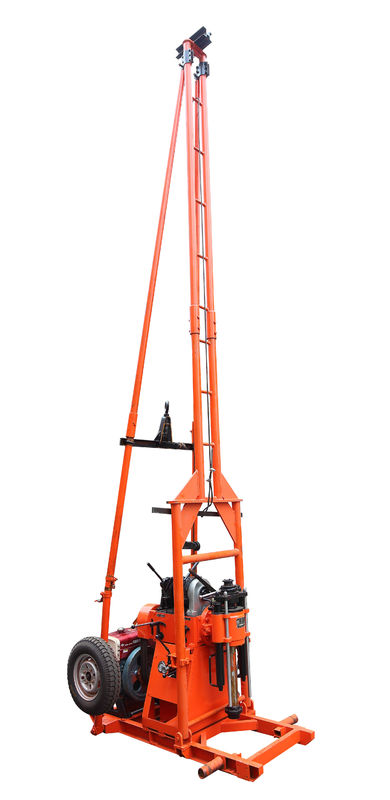

Large Image :  Borehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150T

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: GY-150T

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-8000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
DRILLING CAPACITY: Depth 180m / 42 Stroke Of Spindle: 450mm
NET WEIGHT: 500kgs (without Power)

Borehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150T



GY150 series drilling rig



Description:

  • Multiple revolving speed grades with large torque meets different project need.
  • 2-wheels trailer, portable, easy to move by towing the trailer.
  • Rotary drilling and cable percussion drilling.
  • spindle can turn 360° range .

5. Geotechnical investigation for engineering constructions, shallow depth mineral exploration ,small size pile hole, water well boring and blasting hole







DRILLING CAPACITY Depth 180m / 42
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range 360°
Stroke of Spindle 450mm
Revolving Speed of Spindle 60 200 400 610 1100 rpm
Max. Spindle Torque 1800N*m
Max. Thrust Capacity 20 kN
Max. Balance Capacity 30 kN
AVAILABLE RODS 42mm, 50mm, AW, BW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 24 kN at single pull line
Rope Speed 0.20:0.72:1.26:2.8 m/s at single pull time
Drum Capacity *Φ11mm × 26m
CAT – HEAD Φ132 × 110mm
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 33L/min @ 1650 r.p.m
Max. Pressure 25MPa
POWER Diesel engine ZS1100, 12.1KW at 2200 r.p.m
  Or electronic Motor, 11KW at 1460 r.p.m
NET WEIGHT 500kgs (without power)
DIMENSION(L×W×H) 2050 × 1180 ×1420mm
REMARKS *CAT HEAD is optional and charged separately.
MODEL Weight Dimension Frame Retraction Trailer Support Mud Pump Specs
GY-150T 500 KGS 2050*1180*1420 Not Support Yes, ladder type drilling mast Not Support
GY-150H 510 KGS 2050*1180*1420

Retraction

400mm

NO, four poles drilling mast Not Support
GY-150B 600 KGS 1610*790*1420 Not Support Yes,ladder type drilling mast 100L/min, 1.5Mpa
GY-150HB 610 KGS 1610*790*1420

Retraction

400mm

NO, four poles drilling mast 100L/min, 1.5Mpa





Borehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150TBorehole Water Well Engineering Drilling Rig Depth 180m / 42 GY-150T
