Mining And Geotechnical Core Drill Rig Multiple Speed GY-300A

China Mining And Geotechnical Core Drill Rig Multiple Speed GY-300A supplier

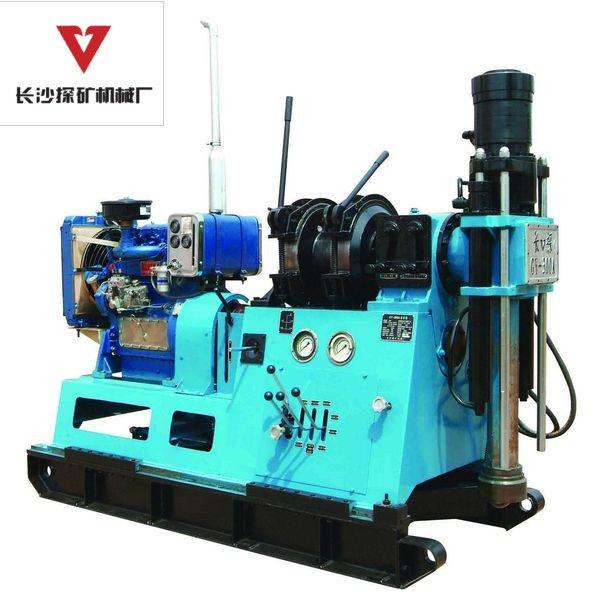

Large Image :  Mining And Geotechnical Core Drill Rig Multiple Speed GY-300A

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: GY300A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-10000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
Drilling Depth: 300m Drilling Diameter: 300mm
NET WEIGHT: 1300kgs (without Power) POWER: Diesel Engine 24KW At 1500 R.p.m

Multiple Speed Mining And Geotechnical Core Drill Rig GY-300A



GY-300A/GY-300T CORE DRILLING RIG



      Multiple speed grades in forward & reverse revolving, meeting different drilling requirements.



      Long spindle stroke, higher drilling efficiency.

.

Frame sliding retraction, easy to connect and replace drilling tools.



Solid built, high quality, long endurance.



DRILLING CAPACITY Depth 135m/PQ, 195m/HQ, 290m/NQ, 440m/BQ
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range 360°
Stroke of Spindle 600mm
Revolving Speed of Spindle Forward 58:101:160:221:234:406:640:885 r.p.m
Reverse 46:183 r.p.m
Max. Spindle Torque 3000N*m
Max. Thrust Capacity 45 kN
Max. Balance Capacity 60 kN
Main Clutch Single plate, dry disc type
AVAILABLE RODS 50mm, PQ, HQ, NQ, BQ, AW, BW
FRAME RETRACTION 460mm
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 30 kN at single pull line
Rope Speed 0.45:0.785:1.24:1.71 m/s at single pull time
Drum Capacity Φ14mm × 45m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 24L/min @ 1200r.p.m
Max. Pressure 8MPa
POWER Diesel engine 24KW at 1500 r.p.m
  Or electronic Motor, 22KW at 1470 r.p.m
NET WEIGHT 1300kgs (without power)
DIMENSION(L×W×H) 2510 × 950 ×1820mm
GY-300T HYDRAULIC TOWER SYSTEM

8m effective hoist height @ 4*4*9m

Effective Drill Angle 45°-90°

1300kgs
