Diamond triplex piston diesel slurry Drilling Mud Pumps BW150

I'm Online Chat Now

Diamond triplex piston diesel slurry Drilling Mud Pumps BW150

China Diamond triplex piston diesel slurry Drilling Mud Pumps BW150 supplier

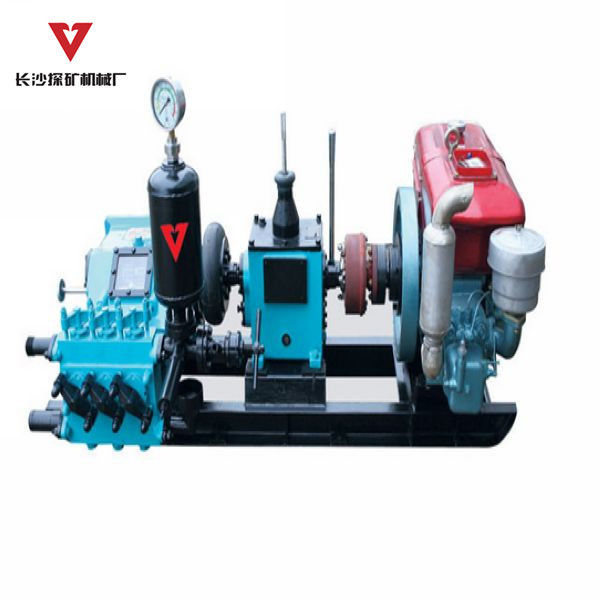

Large Image :  Diamond triplex piston diesel slurry Drilling Mud Pumps BW150

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: BW150

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 1000USD-4000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Detailed Product Description
Pressure: 1-7 Mpa Suction Pipe Dia: φ51mm
Discharge Pipe Dia: φ25mm Displacement: 32-150L/min
Highlight:

mud pump well drilling

,

drilling rig mud pumps

Diamond triplex piston diesel slurry Drilling Mud Pumps BW150



BW-150 MUD PUMP

BW-150 is a horizontal triplex reciprocal piston pump. It is suitable for less than 1500 meters diamond drilling in small diameter, also can be used for medium-low pressure concrete grouting.



Cylinder Diameter 70mm
Stroke 70mm
Handler Position I II III IV I II III IV
Pump Speed 222 130 86 57 183 107 71 47 times/min
Displacement 150 90 58 38 125 72 47 32 L/min
Pressure 1.8 3.2 4.8 7.0 2.3 4.0 6.0 7.0 Mpa
Input Power and Speed 7.5 kW @ 1500 r.p.m
Suction Pipe dia 51mm
Discharge Pipe dia 25mm
Engine ZS1105 diesel engine or electricity motor
Dimension & Weight

1925*795*1150mm, 630 kgs(with diesel)

1840*795*995mm, 516 kgs(with electricity motor)





Diamond triplex piston diesel slurry Drilling Mud Pumps BW150
