Type 1: | Electroplated Diamond | Type 2: | Impregnated Diamond |
---|---|---|---|
Type 3: | Surface Set Diamond | Type 4: | Tungsten Carbide |
Type 5: | Polycrystalline Diamond Compact |

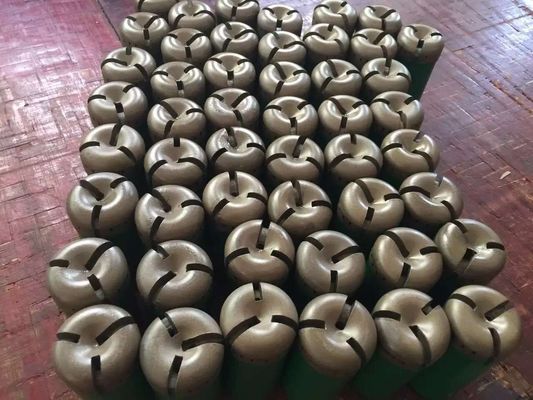

Wireline Pdc Bit For Well Drilling / Diamond Drill Bits For Rock
Q series core bits | ||||||||
Size | O.D | I.D | Availability | |||||
mm | mm | Imp. | S.S | T.C. | PDC | TSP | E.P. | |
AQ | 47.75/47.50 | 27.10/26.85 | √ | √ | √ | √ | √ | √ |
BQ | 59.69/59.44 | 36.52/36.27 | √ | √ | √ | √ | √ | √ |
BQ3 | 59.69/59.44 | 33.65/33.40 | √ | √ | √ | √ | √ | √ |
NQ | 75.44/75.19 | 47.75/47.50 | √ | √ | √ | √ | √ | √ |
NQ3 | 75.44/75.19 | 45.21/44.96 | √ | √ | √ | √ | √ | √ |
HQ | 95.76/95.38 | 63.63/63.38 | √ | √ | √ | √ | √ | √ |
HQ3 | 95.76/95.38 | 61.24/60.99 | √ | √ | √ | √ | √ | √ |
PQ | 122.30/121.80 | 85.09/84.84 | √ | √ | √ | √ | √ | √ |
PQ3 | 122.30/121.80 | 83.18/82.93 | √ | √ | √ | √ | √ | √ |
Core bits for N-series double core barrels | ||||||||
NMLC | 75.44/75.19 | 52.12/51.87 | √ | √ | √ | √ | √ | √ |
HMLC | 98.98/98.60 | 63.63/63.38 | √ | √ | √ | √ | √ | √ |
Core bits for T2 series double core barrels | ||||||||
T2-46 | 46.18/45.92 | 31.82/31.57 | √ | √ | √ | √ | √ | √ |
T2-56 | 56.13/55.88 | 41.83/41.58 | √ | √ | √ | √ | √ | √ |
T2-76 | 76.12/75.87 | 61.82/61.57 | √ | √ | √ | √ | √ | √ |
T2-86 | 86.13/85.88 | 71.83/71.58 | √ | √ | √ | √ | √ | √ |
T2-101 | 101.12/100.87 | 83.82/83.57 | √ | √ | √ | √ | √ | √ |
Core bits for T6 series double core barrels | ||||||||
T6-76 | 76.12/75.87 | 57.12/56.87 | √ | √ | √ | √ | √ | √ |
T6-86 | 86.13/85.88 | 67.13/66.88 | √ | √ | √ | √ | √ | √ |
T6-101 | 101.12/100.87 | 79.12/78.87 | √ | √ | √ | √ | √ | √ |
T6-116 | 116.20/115.82 | 93.14/92.89 | √ | √ | √ | √ | √ | √ |
T6-131 | 131.19/130.81 | 108.13/107.88 | √ | √ | √ | √ | √ | √ |
T6-146 | 146.18/145.80 | 123.11/122.86 | √ | √ | √ | √ | √ | √ |
Core bits for Chinese standard single tube core barrels | ||||||||
59 | 59.5 | 41.5 | √ | √ | √ | √ | √ | √ |
75 | 75.2 | 54.5 | √ | √ | √ | √ | √ | √ |
91 | 91.2 | 68 | √ | √ | √ | √ | √ | √ |
110 | 111.2 | 93 | √ | √ | √ | √ | √ | √ |
130 | 131.2 | 113 | √ | √ | √ | √ | √ | √ |
150 | 151.2 | 133 | √ | √ | √ | √ | √ | √ |
170 | 171.2 | 149 | √ | √ | √ | √ | √ | √ |
219 | 225.2 | 197 | √ | √ | √ | √ | √ | √ |
Core bits for Chinese standard double tube core barrels | ||||||||
75 | 75.2 | 54.5 | √ | √ | √ | √ | √ | √ |
91 | 91.2 | 68 | √ | √ | √ | √ | √ | √ |
110 | 111.2 | 93 | √ | √ | √ | √ | √ |
Noted:
Imp.-Impregnated Diamond Type
S.S.-Surface Set Diamond Type
T.C.-Tungsten Carbide Type
PDC.-Polycrystalline Diamond compact Type
E.P.- Electroplated Diamond Type
