50m Wireline Core Engineering Geotechnical Drill Rig Feeding Stroke 400mm

China 50m  Wireline Core Engineering Geotechnical Drill Rig Feeding Stroke 400mm supplier

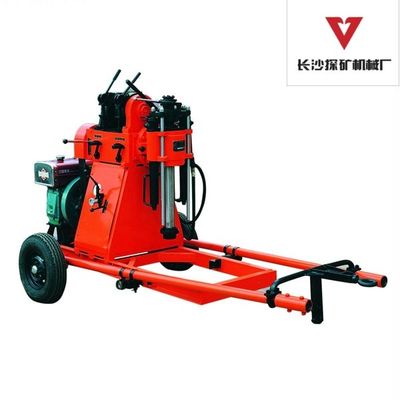

Large Image :  50m Wireline Core Engineering Geotechnical Drill Rig Feeding Stroke 400mm

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: GY-50-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-8000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
DRILLING CAPACITY: Depth 50m / 42 Feeding Stroke: 400mm
POWER: Diesel Engine CZ195, 8.8KW AVAILABLE RODS: 42mm, AW, BW

50m Wireline Core Engineering Geotechnical Drill Rig Feeding Stroke 400mm





GY-50-1 PORTABLE DRILLINLG RIG



  • Rotary drilling and cable percussion drilling function.
  • 2-wheels trailer, portable, easy to move by towing the trailer.
  • Small, light, easy to be dismantled and assembled.
  • Hydraulic feeding structure, high drilling efficiency.



DRILLING CAPACITY Depth 50m / 42
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system
Feeding Stroke 400mm
Revolving Speed 54 140 300 rpm
Max. Spindle Torque 350N*m
Max. Thrust Capacity 10 kN
Max. Balance Capacity 30 kN
AVAILABLE RODS 42mm, AW, BW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 10 kN at single pull line
Rope Speed 0.14 0.32 0.46 0.68 1.17 2.53 m/s at single pull time
Drum Capacity Φ9.3mm × 18m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 30L/min @ 1444 r.p.m
POWER Diesel engine CZ195, 8.8KW
NET WEIGHT 400kgs (without power)
DIMENSION(L×W×H) 1660 ×732 ×1170mm



50m  Wireline Core Engineering Geotechnical Drill Rig Feeding Stroke 400mm
